HERZ-3000 Bypass Body Straight model

3066

HERZ-3000 Bypass Body Straight model

Straight model for one and two pipe systems

With presetting, isolation, drain and fill functions

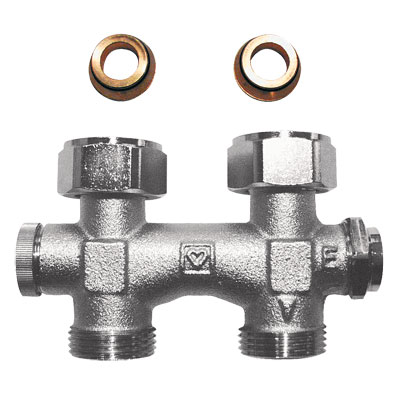

Connection branch-distance between centres is 50 mm, radiator connection G 3/4 with cone seal, freely moving nut. Pipe connection with external thread G 3/4, with cone seal, for compression adapter. 2 cone sockets are included. Compression adapters have to be ordered separately.



Not stocked in the UK

Product List

Code Qty Product Description
  • DN
  • DIM
  • Thread
Order
1306601 HERZ-3000 Bypass Body Straight model
  • 15
  • 1/2
  • G 3/4
