4700

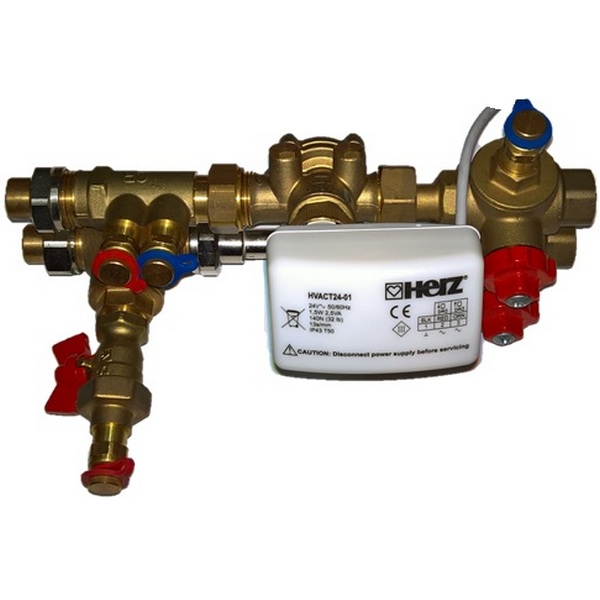

Compact Connect 4 for direct assembly onto FCU vertical orientation

PN16 Compact Connect 4 PICV

Preassembled unit designed for direct assembly to terminal unit 40mm centres with copper tails presented vertically, utilizing 4006 Pressure Independent Balancing Control Valve SMART
Including flushing bypass, isolating valves, flow verification device, strainer with drain valve.

Hose union supplied separately if required

Actuators required, supplied separately

Product List

Code	Product	Description	DN Flow range	Order
1470028	HERZ Compact Connect-4	PICV RH Version vertical	15 ULF 0.003 - 0.013 l/s	
1470020	HERZ Compact Connect-4	PICV RH Version vertical	15 LF 0.013 - 0.030 l/s	
1470029	HERZ Compact Connect-4	PICV RH Version vertical	15 MF 0.029 - 0.061 l/s	
1470021	HERZ Compact Connect-4	PICV RH Version vertical	15 0.045 - 0.099 l/s	
1470022	HERZ Compact Connect-4	PICV RH Version vertical	20 0.094 - 0.180 l/s	
1470026	HERZ Compact Connect-4	PICV RH Version vertical	20 HF 0.180 - 0.326 l/s	
1470027	HERZ Compact Connect-4	PICV RH Version vertical	20 UHF 0.325 - 0.462 l/s	
1470038	HERZ Compact Connect-4	PICV LH Version vertical	15 ULF 0.003 - 0.013 l/s	
1470030	HERZ Compact Connect-4	PICV LH Version vertical	15 LF 0.013 - 0.030 l/s	
1470039	HERZ Compact Connect-4	PICV LH Version vertical	15 MF 0.029 - 0.061 l/s	
1470031	HERZ Compact Connect-4	PICV LH Version vertical	15 0.045 - 0.099 l/s	
1470032	HERZ Compact Connect-4	PICV LH Version vertical	20 0.094 - 0.180 l/s	
1470036	HERZ Compact Connect-4	PICV LH Version vertical	20 HF 0.180 - 0.326 l/s	
1470037	HERZ Compact Connect-4	PICV LH Version vertical	20 UHF 0.325 - 0.462 l/s	
