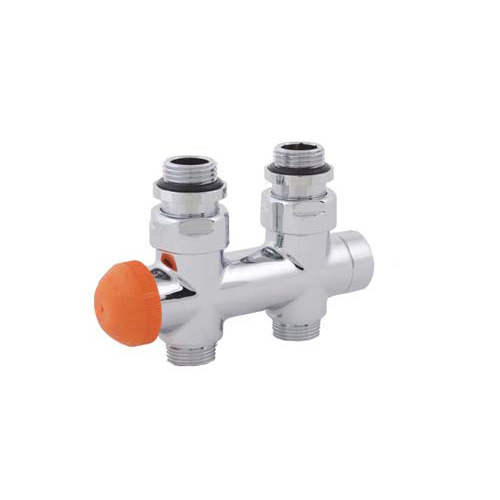

S3692 / S3792
Deluxe TS-3000 Presettable Valve Straight Model
pipe centre distance 50mm, with Continuous Pre-Setting insert TS-98-V,
radiator connection G 1/2, freely moving nut, thermostatic head
connections M 28 x 1.5. Pipe connection with male thread
G 3/4 with cone seal for compression adapter. Compression
adapters have to be ordered separately.
Not stocked in the UK
Product List
| Code | Qty | Product | Description |
|
Order |
|---|---|---|---|---|---|
| S369241 | Deluxe TS-3000 Presettable Valve Straight Model | Straight pattern for one pipe 50mm centres M22 x 1.5 |
|
|
|
| S369244 | Deluxe TS-3000 Presettable Valve Straight Model | Straight pattern for one pipe 50mm centres M22 x 1.5 |
|
|
|
| S379241 | Deluxe TS-3000 Presettable Valve Straight Model | Straight pattern for two pipe 50mm centres M22 x 1.5 |
|
|
|
| S379244 | Deluxe TS-3000 Presettable Valve Straight Model | Straight pattern for two pipe 50mm centres M22 x 1.5 |
|
|
