S3691 / S3791

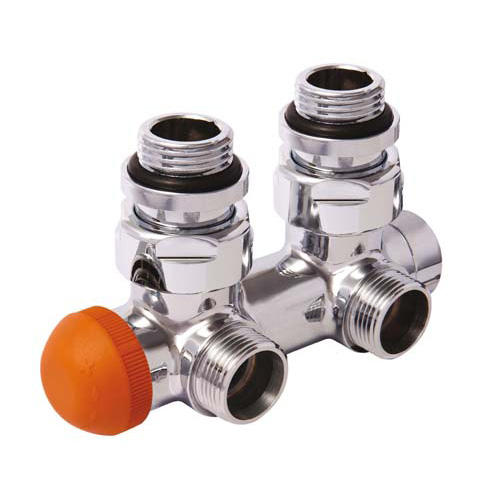

H3000-TS-Design, angle model for two-pipe system, with pre-setting
pipe centre distance 50mm, with Continuous Pre-Setting insert TS-98-V,
radiator connection G 1/2, freely moving nut, thermostatic head
connections M 28 x 1.5. Pipe connection with male thread
M 22 x 1.5 with cone seal for compression adapter. Compression
adapters have to be ordered separately.
Not stocked in the UK
Product List
| Code | Qty | Product | Description |
|
Order |
|---|---|---|---|---|---|
| S379141 | Deluxe TS-3000 Presettable Valve Angle Model | Angle pattern for one pipe 50mm centres M22 x 1.5 |
|
|
|
| S379144 | Deluxe TS-3000 Presettable Valve Angle Model | Angle pattern for one pipe 50mm centres M22 x 1.5 |
|
|
|
| S369141 | Deluxe TS-3000 Presettable Valve Angle Model | Angle pattern for two pipe 50mm centres M22 x 1.5 |
|
|
|
| S369144 | Deluxe TS-3000 Presettable Valve Angle Model | Angle pattern for two pipe 50mm centres M22 x 1.5 |
|
|
