4219

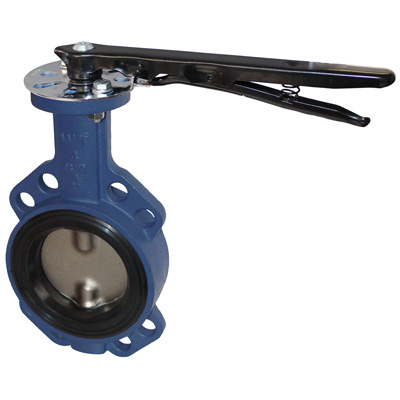

Butterfly Valve, semi lugged version
Body made of grey cast iron JL 1040, acc. to EN 1561, blue coated, hand lever made of glass-fibre reinforced polyamide plastic with spring lock and integrated locking mechanism, steel disk nickel plated, EPDM liner and sealing, model with 4 to 8 lugs. Operating pressure 16 bar, operating temperature range: -30 °C to 110 °C. For dimensions DN 250 and DN 300 the max. operating pressure is 10 bar.
Product List
| Code | Qty | Product | Description |
|
Order |
|---|---|---|---|---|---|
| 1421901 | Butterfly Valve, semi lugged version |
|
|
||
| 1421902 | Butterfly Valve, semi lugged version |
|
|
||
| 1421903 | Butterfly Valve, semi lugged version |
|
|
||
| 1421904 | Butterfly Valve, semi lugged version |
|
|
||
| 1421905 | Butterfly Valve, semi lugged version |
|
|
||
| 1421906 | Butterfly Valve, semi lugged version |
|
|
||
| 1421907 | Butterfly Valve, semi lugged version |
|
|
||
| 1421908 | Butterfly Valve, semi lugged version |
|
|
||
| 1421909 | Butterfly Valve, semi lugged version |
|
|
