• Cost, time-and space-saving mounting of the boiler to the pipe line systems
• Pre-assembled connection set for pumps with length 180 mm
• Insulation as standard

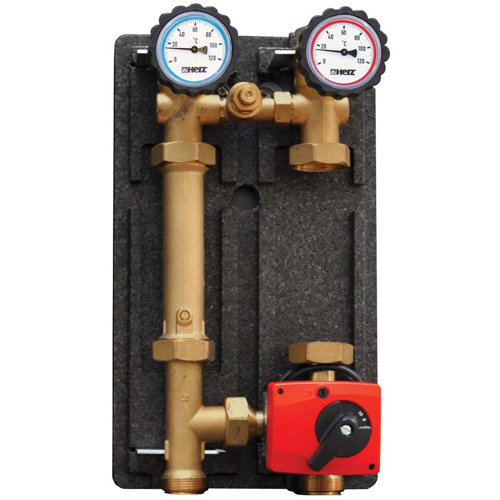

Consisting of:

• Integrated ball valve with thermometer with handle (red - Supply, blue - Return)
• Distance piece with check valve
• Pressure overfl ow valve
• 3-Port mixing valve
• Actuating drive
• Distance between supply and return pipe: 125 mm
• Max. temperature: 110°C.
• Max. operating pressure: 10 bar
• Temperature range: from 0°C to 120°C
• Overfl ow valve.
