Herz Valves UK Ltd. - 500N Actuators for Three Port Valve 4037
Feel the Water

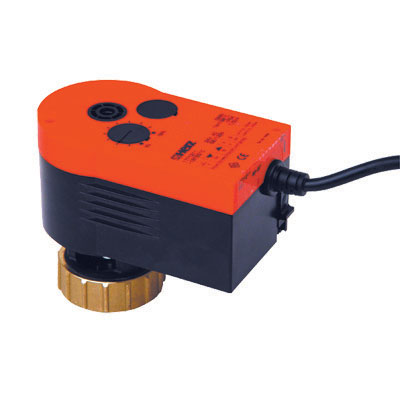

500N Actuators for Three Port Valve 4037

7712

500N Actuators for Three Port Valve 4037

Operation through heating control for 2-point, 3-point or continuous control. Selection of characteristic line is linear or parallel. Two-piece body made of selfextinguishing plastic. Plastic console and brass union nut for valve installation. Working condition can be directly switched, automatic adjustment of valve lift. Code switch for selection of characteristic line and running time. Gearbox for positioning of valve and adjustment of hand wheel. Vertical and horizontal mounting is possible, inverted installation is not possible.

Product List

Code Qty Product Description
  • Betriebsspannung
Order
1771211 500N Actuators for 3 port 4037 2 point, 3 point or continuous control
  • 24 V
1771250 500N Actuators for 3 port 4037 3 point Control
  • 230 V
1771251 500N Actuators for 3 port 4037 3 point Control
  • 24 V
