Herz Valves UK Ltd. - Two Port Zone/Control Ball Valve PN40
Feel the Water
Search
Two Port Zone/Control Ball Valve PN40

2117

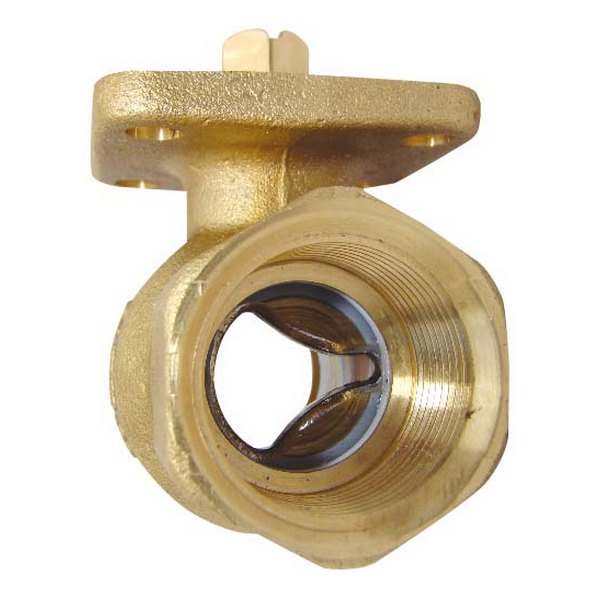

Two Port Zone/Control Ball Valve PN40

Two port control valve

DZR brass body, DZR Brass Ball, chrome plated and polished, Ball with equal percentage characteristic, Internal connection threads to ISO 7/1 Rp.

Actuators 7712 to be ordered separately.

Product List

Code Qty Product Description
  • DN
  • kvs
 Order
1211711 Two Port Zone/Control Ball Valve Equal percentage characteristic
  • 15
  • 5.0
1211712 Two Port Zone/Control Ball Valve Equal percentage characteristic
  • 20
  • 8.0
1211713 Two Port Zone/Control Ball Valve Equal percentage characteristic
  • 25
  • 12.5
1211714 Two Port Zone/Control Ball Valve Equal percentage characteristic
  • 32
  • 20.0
1211715 Two Port Zone/Control Ball Valve Equal percentage characteristic
  • 40
  • 32.0
1211716 Two Port Zone/Control Ball Valve Equal percentage characteristic
  • 50
  • 50.0
