4218GMF

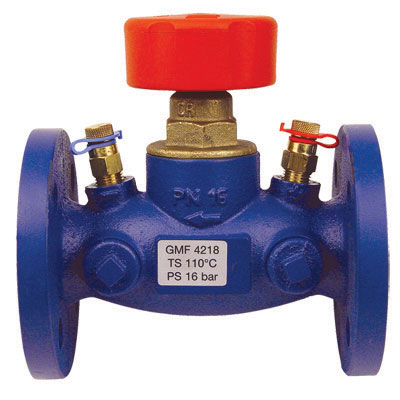

Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points

Body made of cast iron GJL 250 according to EN 1561, flange according to EN 1092, PN 16, length according to ÖNORM EN-558-1, basic series 1, blue enamel coating. Dezincification resistant brass upper part, with non-rising spindle. Spindle seal by means of double O-Ring. Two test points 1 0284 are mounted next to the handwheel.

Product List

Code	Description	DIM kvs	Order
1421851	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	150 279,05	
1421843	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	25 11,53	
1421844	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	32 16,6	
1421845	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	40 28,6	
1421846	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	50 37,84	
1421847	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	65 60,3	
1421848	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	80 67,8	
1421849	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	100 99,55	
1421850	Circuit Regulating Valves for Differential Pressure Measurement, Flanged Version Screw-down Model with test points	125 186,58	
