Herz Valves UK Ltd. - Ball valve with T-handle (alluminium alloy), PN 25, socket x socket
Feel the Water

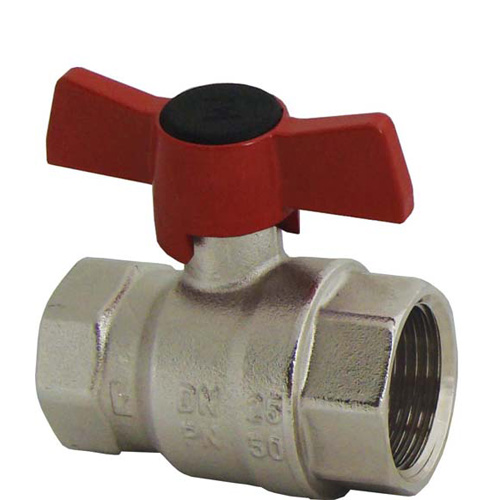

Ball valve with T-handle (alluminium alloy), PN 25, socket x socket

2201

Ball valve with T-handle (alluminium alloy), PN 25, socket x socket

Body made of forged brass according to
EN 12420, nickel plated, seals PTFE.
Chrome-plated ball with full bore. Female thread
according to ISO 228 Operating temperature range
from -30 °C to 150 °C. (Water from 0 °C to 110 °C),
for all non-aggressive media such as water, oil, air,
fuel oil or lubricating oil.

Product List

Code Qty Product Description
  • DIM
  • PN
Order
1220111 Ball valve with T-handle (alluminium alloy), PN 25, socket x socket
  • 15
  • 25
1220112 Ball valve with T-handle (alluminium alloy), PN 25, socket x socket
  • 20
  • 25
1220113 Ball valve with T-handle (alluminium alloy), PN 25, socket x socket
  • 25
  • 25
1220114 Ball valve with T-handle (alluminium alloy), PN 25, socket x socket
  • 32
  • 25
